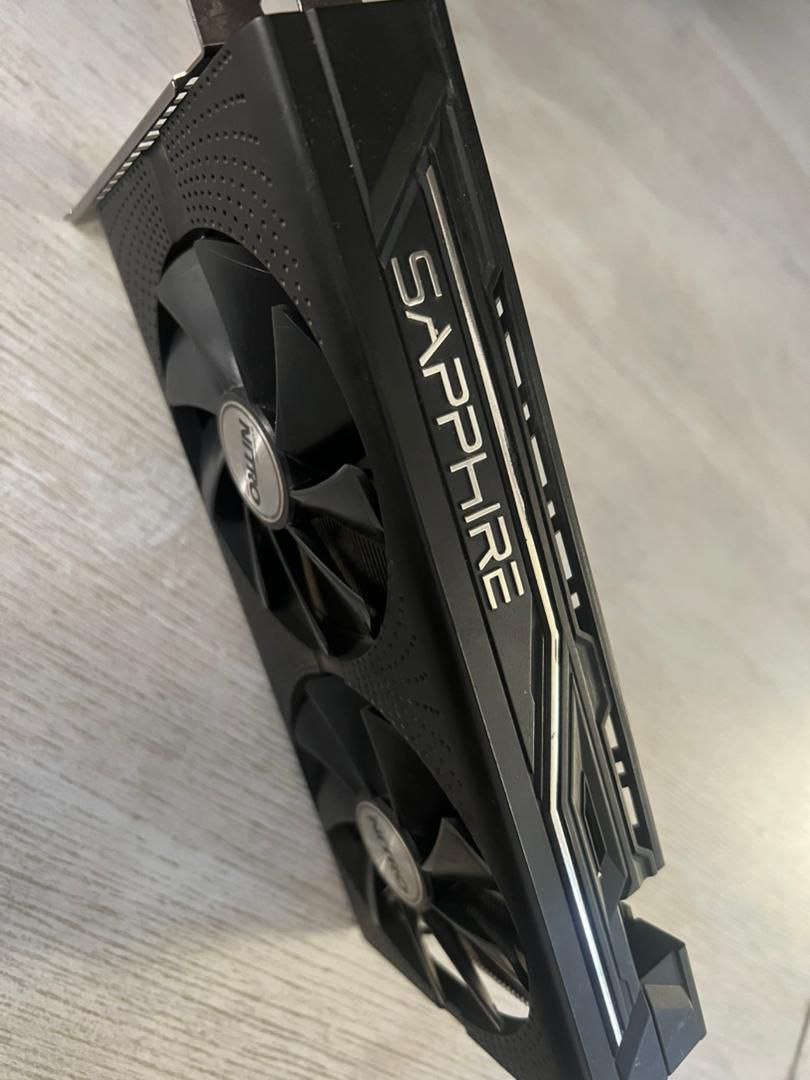

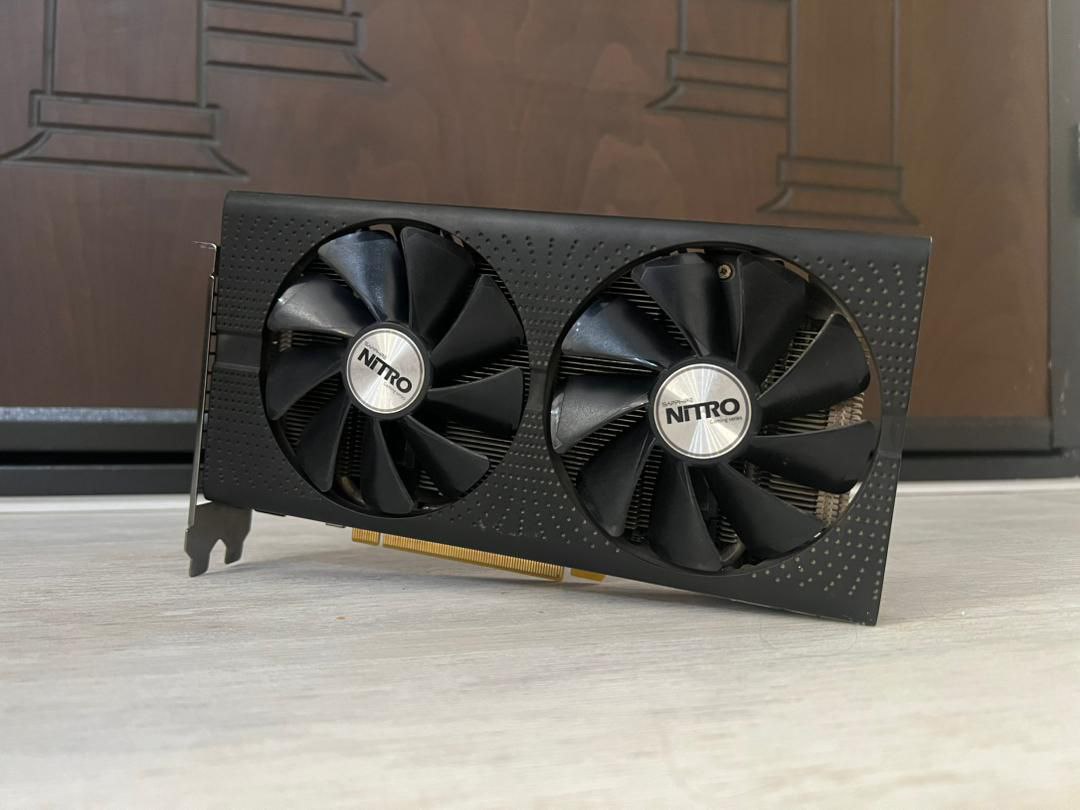

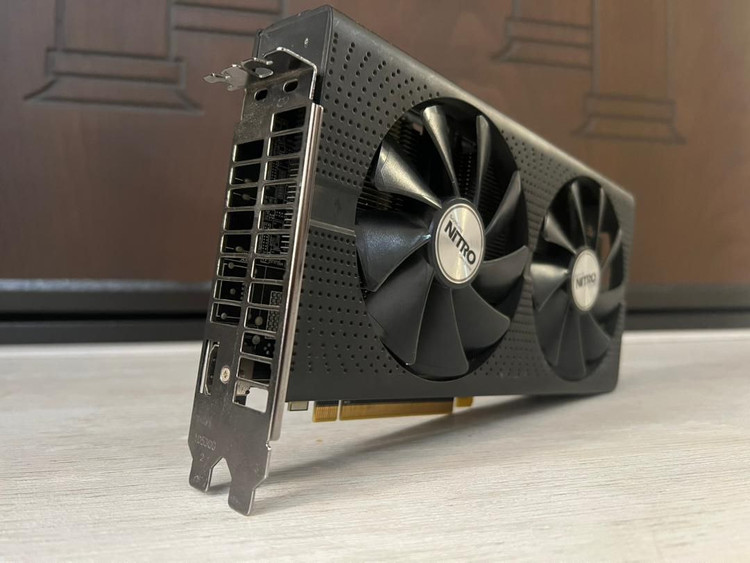

SAPPHIRE PULSE Radeon RX 570 8GB GDDR5 کارت گرافیک سافایر

• Engine Clock: Up to 1284 MHz (Boost)
• Memory: 8GB GDDR5 7000 MHz Effective
• 2048 Stream Processors
• Dual-X Cooling
• Quick Connect

Specifications

• #SKU#: 11265-05 SAPPHIRE PULSE RADEON RX 580 8GB
• #SKU#: 11265-06 PULSE RADEON RX 580 8GB
• #SKU#: 11265-33 PULSE RADEON RX 580 8GB

GPU

RX 580, 14 nm FinFET
4th Graphics Core Next (GCN)

Engine Clock

Up to 1366 MHz, Boost

Stream Processors

2304

Memory Size/Bus

8GB GDDR5/256-bit

Memory Clock

8000 MHz effective

Displays

Maximum 5 Outputs

Interface

PCI-Express 3.0

Resolution

• DisplayPort: 5120×2880@60Hz
• HDMI: 4096×2160@60Hz
• DVI:2560x1600@60Hz

Output

• 1x DVI-D
• 2x HDMI
• 2x DisplayPort 1.4

BIOS Support

• UEFI

API

• OpenGL® 4.5
• OpenCL 2.0
• DirectX® 12
• Shader Model 5.0

Game Index

1440p gaming

Sapphire Features

• Dual-X Cooling
• Long Life Dual Ball Bearing Fans
• Intelligent Fan Control III
• Quick Connect System
• Long Life Capacitor
• Backplate
• Black Diamond 4 Chokes
• Fuse protection

AMD Features

• Radeon™ VR Ready Premium
• Radeon™ Software
• Radeon™ FreeSync Technology
• AMD LiquidVR™ Technology
• 4th Gen GCN Architecture
• Radeon™ Chill
• Radeon™ ReLive DirectX® 12 Technology
• AMD Eyefinity Technology (Gaming)
• AMD App Acceleration
• AMD CrossFire™ Technology
• AMD CrossFire™ (Bridgeless)
• 3rd Gen 14nm Process Technology
• OpenCL 2.0
• OpenGL 4.5
• AMD PowerTune Technology
• TrueAudio Next
• Unified Video Decoder (UVD)
• Video Code Engine (VCE)
• Virtual Super Resolution
• The Vulkan® API

Cooler Type

• Dual-X Cooling Technology
• Two ball bearing fan
• Fan Quick Connect

Form Factor

• 2 Slots Occupied
• 230X125X40 Dimension/mm

Power Consumption

<225W

OS

Windows®  11, 10, Windows®  7, 64bit operating system required

System Requirement

• 500 Watt or greater power supply (Recommended)
• 1 x 8-pin Power Connector
• PCI Express® compliant motherboard with one x16 graphics slot
